Configure
Réglette LED
Retrofit B-Trunk

Retrofit B-Trunk

from : CHF(HT) 158.00 price per unit : CHF(HT) 158.00

  • Degree of protection (IP):

    • IP20

  • Impact resistance:

    • IK06

  • Class of protection:

    • I

  • Light beam angle:

    • Double asymmetrical
    • 30°
    • 60°
    • 90°
    • 120°

  • CRI:

    • 80

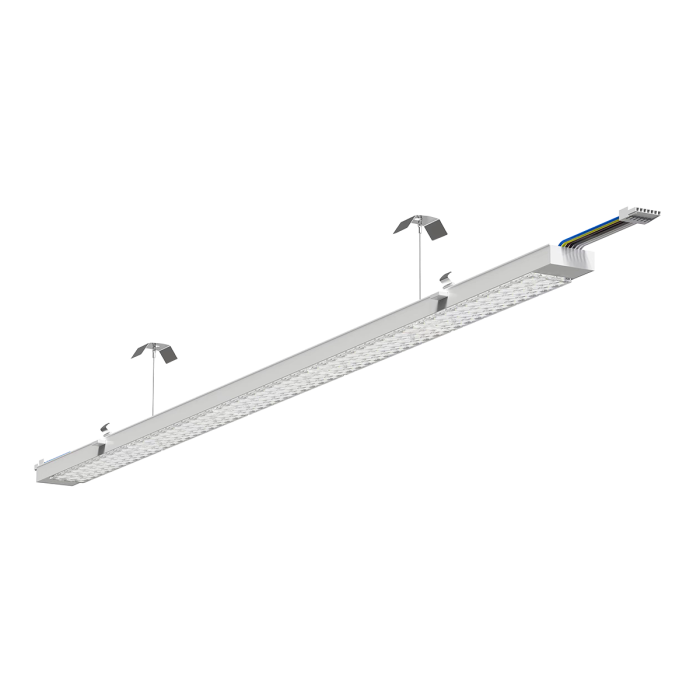

The new RETROFIT B-TRUNK luminaire, with its integrated "click&fast" system, is the ideal solution for replacing light fittings with T8/T5 fluorescent tubes. Thanks to its simple and efficient installation process, which requires no tools, it is compatible...

Technical data

  • Size:

    • 1528 x 66 x 27mm

Dimension

  • Poids:

Général

  • Colour:

    • White

  • Unity:

    • pcs

  • Degree of protection (IP):

    • IP20

  • Materials:

    • Aluminium

  • Impact resistance:

    • IK06

Electrique

  • Dimming:

    • STD
    • DALI

  • Light source:

    • LED

  • Lambda:

    • 0.95

  • Class of protection:

    • I

  • Power:

    • 20W - 60W

Optique

  • Light beam angle:

    • Double asymmetrical
    • 30°
    • 60°
    • 90°
    • 120°

  • Radiation:

    • direct light

  • Reflecteur:

    • Lens PMMA

Led

  • Colour temperature:

    • 3000K
    • 4000K

  • CRI:

    • 80

  • Chromatic stability (MacAdam):

    • 3

  • Lumen maintenance factor:

    • L80 50'000h

  • Flux lumineux:

Description

The new RETROFIT B-TRUNK luminaire, with its integrated "click&fast" system, is the ideal solution for replacing light fittings with T8/T5 fluorescent tubes. Thanks to its simple and efficient installation process, which requires no tools, it is compatible with a variety of strip systems offered by several brands. It's an excellent choice for modernising lighting and reducing environmental impact. Applications: supermarkets, retail, industry, corridors and car parks.

Compatibility of LED Strips

Compatibility of T5 and T8 strips with those on the Swiss market

Structure of the LED strip

Ledixa Retrofit B-Trunk structure

Optics and ceiling height

Ledixa Retrofit B-Trunk presentation of ceiling height, choice of optics
